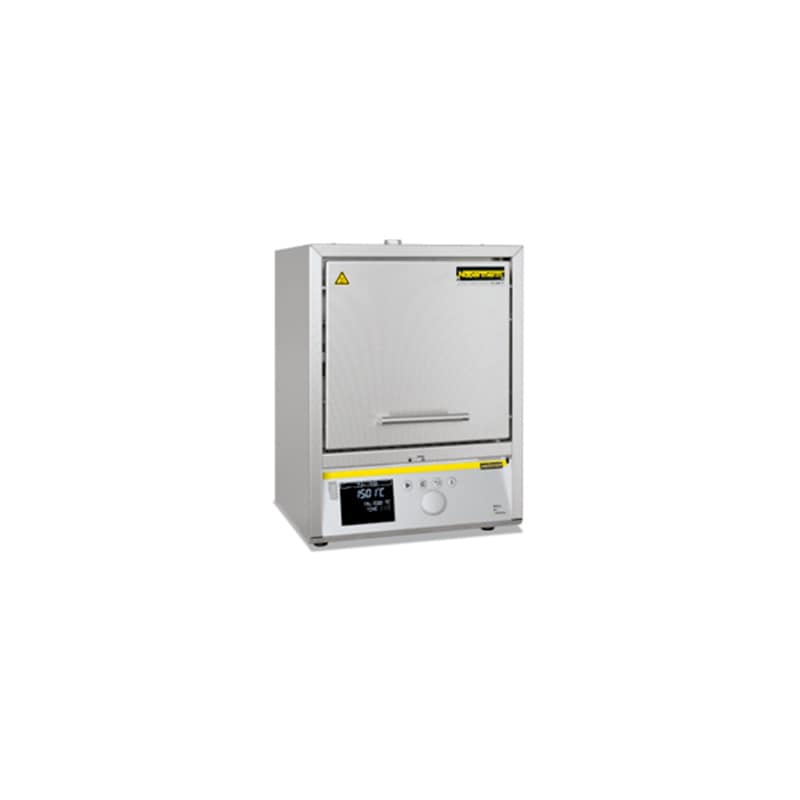

Nabertherm LHTCT 01/16

High-Temperature Furnace with SiC Rod Heating for Sintering Zirconia up to 1550°C

Designed as a tabletop model with SiC heating rods, this comparably inexpensive high-temperature furnace offers numerous advantages when sintering non-translucent zirconia with an operating temperature of up to 1500°C. Compared to other models, however, the costs for changing the heating elements are higher. The large heating chamber and fast heat-up times make this model a good choice for CAD/CAM machining of zirconia. The controller of the furnace is freely programmable for the individual sintering of the zirconia material. The high-temperature furnace is also designed for connection to the single-phase power grid.

Features & Benefits:

  • Temperature max 1550°C
  • Working temperature 1500°C, increased wear and tear must be expected when working at higher temperatures
  • Single-phase connection (LHTCT 01/16)
  • Dual-shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
  • Only fiber materials are used which are not classified as carcinogenic according to TRGS 905, class 1 or 2
  • Scope of delivery includes a starter set for charging on one level, additional levels as additional equipment
  • Type S thermocouple
  • Switching system with solid-state-relays, power tuned to the SiC rods

For more information, contact your Zahn Prosthetic Specialist:

Phone:1-800-496-9500
