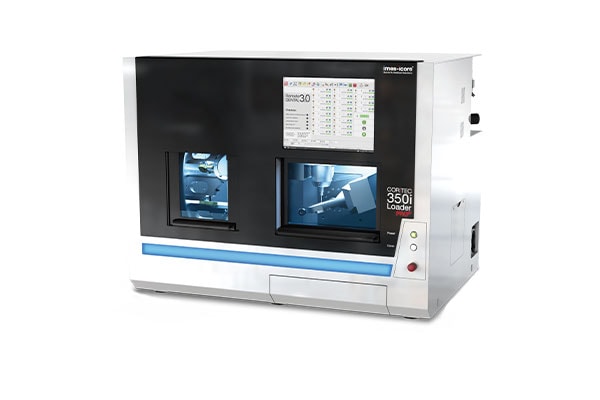

CORiTEC 350i Loader Pro+

CORiTEC 350i Loader Pro+

imes-icore

CORiTEC 350i Loader Pro+

The plus in performance and precision

The CORiTEC 350i Loader PRO+ comes equipped with a powerful 2.6 kW spindle with three hybrid ball bearings (water-cooled) that allows it to use advanced high-resolution dynamic servo motors and absolute measuring systems. The mill’s massive stainless steel blank holders reduce vibrations and care for stability. Its water cooling ensures a constant temperature of the milling spindle. Thermal expansion of the milling spindle is significantly minimized so that you can achieve even more precise milling results. Unique to the CORiTEC 350i Loader PRO+, it has a fully automated blank magazine that enables the versatile machining of up to 12 blanks without interaction with a dental lab technician.

Features:

  • High-performance 2.6kW high-frequency-spindle up to 60.000 rpm (separate spindle chiller required)
  • 5-axis processing (3+2 and simultaneous)
  • 12-fold automatic blank changing system (8 stainless steel blank holders included, expandable to 10 or 12 blank holders)
  • High dynamic AC servomotors with absolute encoder
  • Massive axis construction made of polymer concrete
  • Strong zero-point clamping system integrated
  • Integrated dry and wet processing
  • Integrated cooling liquid tank and circle
  • Suitable for processing of zirconium oxide, aluminum oxide, wax, PMMA, resins, glass-ceramics, CoCr and titanium
  • Milling-angles up to 30 degrees with the standard blank holder
  • Rotation-axis 360 degrees, pivot-axis up to 115 degrees
  • High shine chassis with LED illumination
  • Integrated touchscreen and PC
  • Included management software "CNC-Manager"
  • Automatic tool-changing system with 20 tool positions
  • Dust cover for tool changer
  • Collet 6mm shaft
  • Integrated precise tool measurement sensor
  • Temperature compensation for consistent high precision also at variations in environmental temperature
  • Integrated suction hose including adapter
  • Included CNC control software CORiTEC Remote DENTAL 3.0
CORiTEC 350i Loader Pro+

Specifications

Mechanics / electronics
Base structure Polymer concrete
Number of axes and operation type 5 axes,
simultaneous machining
Rotation angle A-axis 360°, B-axis 115°
Spindle High-frequency spindle
Maximum spindle speed / spindle power 60.000 rpm
2.6 KW
Spindle cooling Water cooled
Zero point clamping system Yes
Blankchanger Up to 12 blanks with stainless steel holder
Tools Milling and grinding tools with 6mm shaft
Tool changer 20-times
Tool length control ≤ 0.002 mm precision
Integrated PC Windows based
Display Integrated 15" touchscreen
Illumination 3 LED status colors /
LED illumination
Software Remote DENTAL 3.0
Compressed air supply* 6,5 - 9,0bar @ 80l/min
95 - 130PSI @ 2,9cf/min
Cooling liquid 4,8 l
1,27gal (US)
Connecting requirements
Weight 255 kg / 562.27 lbs
Width x depth x height 46.6 x 31.1 x 33.7 inch
1058 x 790 x 857 mm
Supply voltage / frequency 100-240 V
50/60 Hz
